AF24

WEATHERPROOF OUTDOOR PROJECTOR ENCLOSURE

Our outdoor projector enclosure AF24, thanks to its heating and cooling system, allows the installation of any beamer in any weather condition. The fiberglass case, unlike metal, prevents condensation inside the box. With our waterproof, protective housing you will be able to have perfect year-round outdoor projections and video mappings without having to worry about heat, cold, dust rain or snow. Furthermore, an internal filter purifies the entering air permitting the best possible working conditions. If connected H24 to the electrical current, the AF24 protection performs an automatic temperature check and activates the heating and cooling system both during the day (when the projector is switched off) and at night when the projector is working. The AF24 has also been designed to be installed to the ceiling or, in general, to any suitable support structure, also we can customize it!

Projector Enclosure AF24
AF24 AVAILABLE SPACE WITHIN THE CASE
METRIC UNITS ENGLISH UNITS

width

650 mm

25.6"

height

300 mm

11.8"

depth

600 mm

23.6"

Enclosures suitable for projectors

ALL THE MEASURES ARE CUSTOMIZABLE ACCORDING TO YOUR VIDEO PROJECTOR

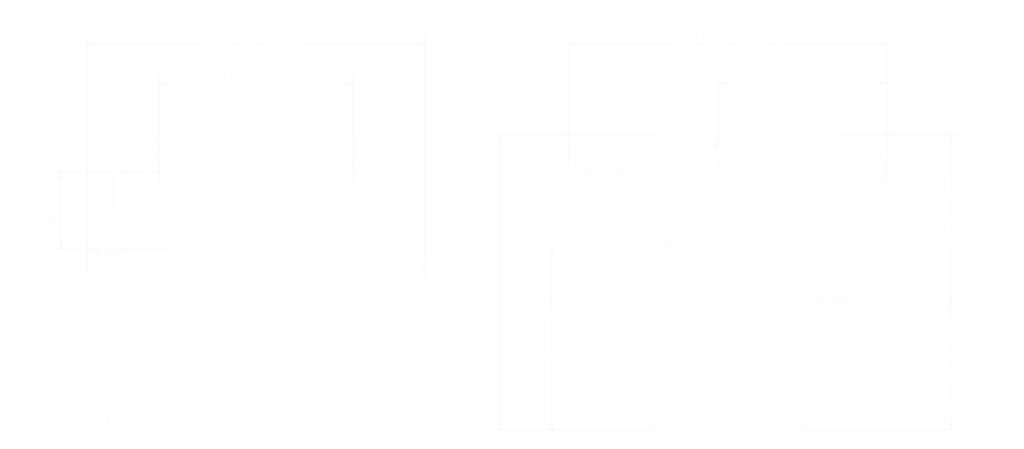

CASE AF24 Proietta - Measure

SPECIFICATIONS:

WEIGHT: 80,0 kg (176.4 lbs)
MAX CONSUMPTION COOLING MODE: 110 W / 0,5 A
MAX CONSUMPTION  DURING HEATING AND DEHUMIDIFICATION MODE: 500 W / 2,3 A

FILL THE FORM TO REQUEST

Section 1

AF24-H

FOR MULTIPLE PROJECTORS

Projector Enclosure AF24-H
AF24-H AVAILABLE SPACE WITHIN THE CASE
METRIC UNITS ENGLISH UNITS

width

650 mm

25.6"

height

600 mm

23.6"

depth

600 mm

23.6"

enclosure suitable for multi projectors

ALL THE MEASURES ARE CUSTOMIZABLE ACCORDING TO YOUR VIDEO PROJECTOR

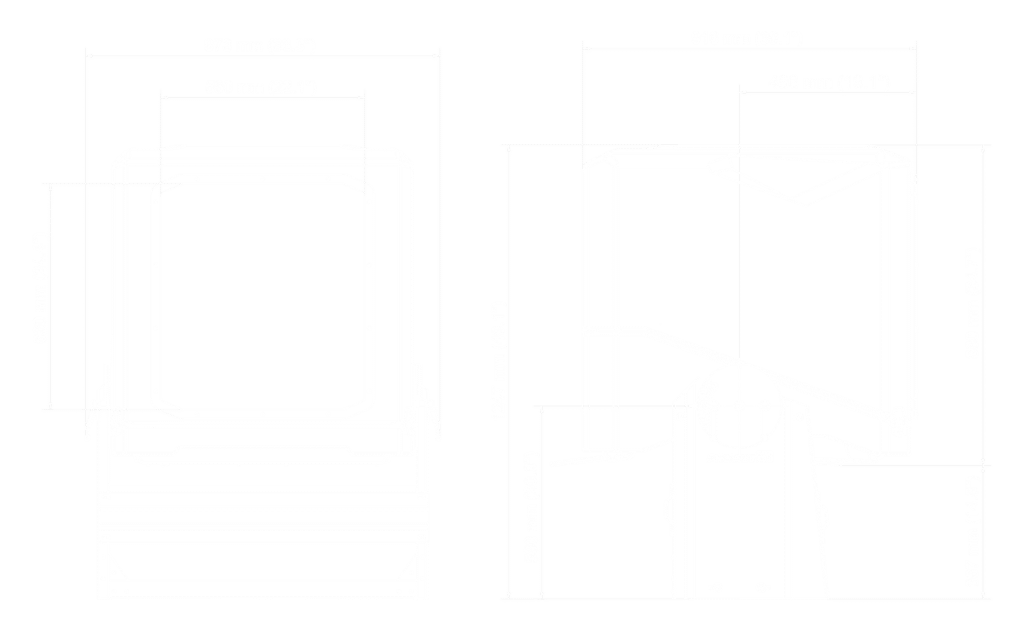

AF24-H Proietta Case: measure

SPECIFICATIONS:

WEIGHT: 115,0 kg (235.5 lbs)
MAX CONSUMPTION COOLING MODE: 210 W / 0,9 A
MAX CONSUMPTION  DURING HEATING AND DEHUMIDIFICATION MODE: 500 W / 2,3 A

FILL THE FORM TO REQUEST
