F32

WEATHERPROOF OUTDOOR PROJECTOR ENCLOSURE

Our outdoor projector enclosure F32, thanks to its heating and cooling system, allows the installation of any beamer in any weather condition. The fiberglass case, unlike metal, prevents condensation inside the box. With our waterproof, protective housing you will be able to have perfect year-round outdoor projections and video mappings without having to worry about heat, cold, dust rain or snow. Furthermore, an internal filter purifies the entering air permitting the best possible working conditions. If connected H24 to the electrical current, the F32 protection performs an automatic temperature check and activates the heating and cooling system both during the day (when the projector is switched off) and at night when the projector is working. The F32 has also been designed to be installed to the ceiling or, in general, to any suitable support structure. Our outdoor projector cover is suitable for video projector up to 32k ANSI lumen and if it doesn’t suit your video projector, we can customize it!



increased ventilation compared to previous version

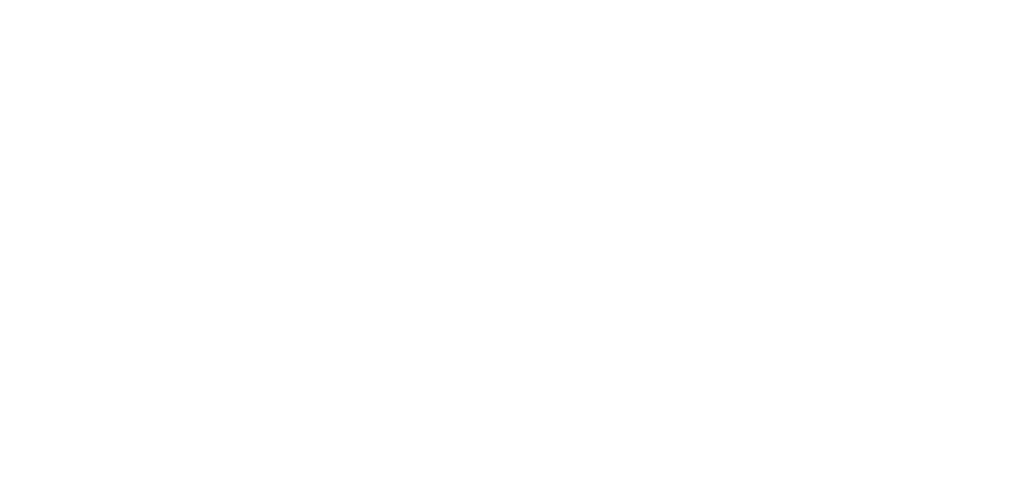

F32 MODEL: AVAILABLE VOLUME FOR THE PROJECTOR
METRIC UNITS ENGLISH UNITS

width

650 mm

25.6"

height

350 mm

13.8"

depth

850 mm

33.5"

Enclosures suitable for projectors

ALL THE MEASURES ARE CUSTOMIZABLE ACCORDING TO YOUR VIDEO PROJECTOR

SPECIFICATIONS:



WEIGHT: 115,0 kg (253.5 lbs)
MAX CONSUMPTION COOLING MODE: 420 W / 1,84 A
MAX CONSUMPTION DURING HEATING AND DEHUMIDIFICATION MODE: 420 W / 1,84 A

FILL THE FORM TO REQUEST

Section 1

F32-X2

FOR MULTIPLE PROJECTORS

increased ventilation compared to previous version

F32 MODEL: AVAILABLE VOLUME FOR THE PROJECTOR
METRIC UNITS ENGLISH UNITS

width

650 mm

25.6"

height

850 mm

33.5"

depth

850 mm

33.5"

enclosure suitable for multi projectors

ALL THE MEASURES ARE CUSTOMIZABLE ACCORDING TO YOUR VIDEO PROJECTOR

SPECIFICATIONS:



WEIGHT: 165,0 kg (363.8 lbs)
MAX CONSUMPTION COOLING MODE: 630 W / 2,76 A
MAX CONSUMPTION DURING HEATING AND DEHUMIDIFICATION MODE: 420 W / 1,84 A

FILL THE FORM TO REQUEST
