AF6
WEATHERPROOF OUTDOOR PROJECTOR ENCLOSURE
Our outdoor projector enclosure AF6, thanks to its heating and cooling system, allows the installation of any beamer in any weather condition. The fiberglass case, unlike metal, prevents condensation inside the box. With our waterproof, protective housing you will be able to have perfect year-round outdoor projections and video mappings without having to worry about heat, cold, dust rain or snow. Furthermore, an internal filter purifies the entering air permitting the best possible working conditions. If connected H24 to the electrical current, the AF6 protection performs an automatic temperature check and activates the heating and cooling system both during the day (when the projector is switched off) and at night when the projector is working. The AF6 has also been designed to be installed to the ceiling or, in general, to any suitable support structure. Our outdoor projector housing is suitable for video projector up to 6k ANSI lumen and if it doesn’t suit your video projector, we can customize it!
| INTERNAL SIZES OF THE AF6 MODEL | METRIC UNITS | ENGLISH UNITS |
|
width |
480 mm |
18.9" |
|
height |
200 mm |
7.9" |
|
depth |
360 mm |
14.2" |

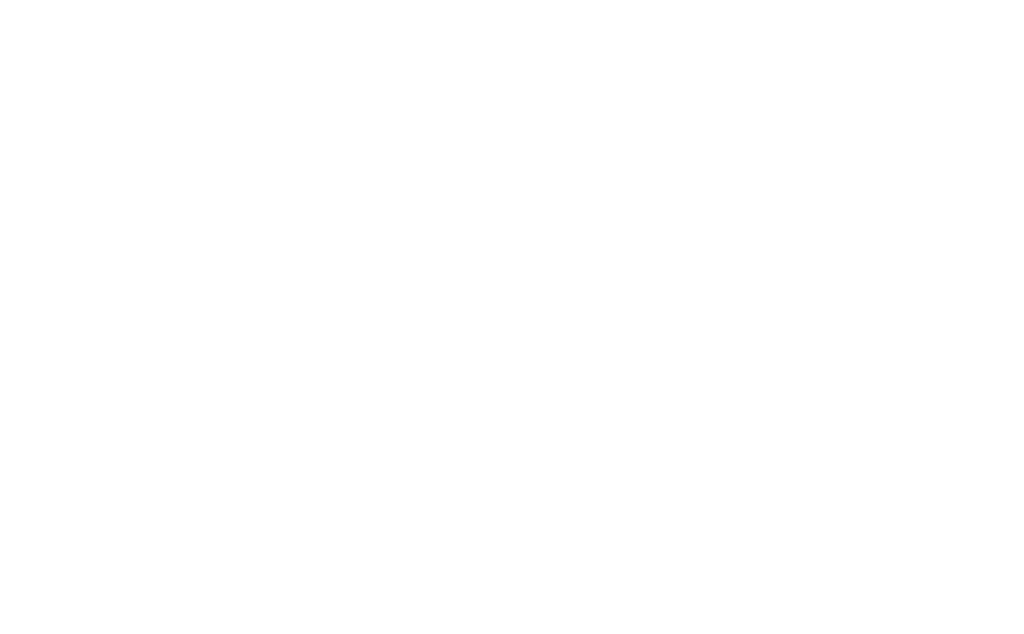

ALL THE MEASURES ARE CUSTOMIZABLE ACCORDING TO YOUR VIDEO PROJECTOR
SPECIFICATIONS:
WEIGHT: 30,0 kg (66.1lbs)
MAX CONSUMPTION COOLING MODE: 50 W / 0,2 A
MAX CONSUMPTION DURING HEATING AND DEHUMIDIFICATION MODE: 330 W / 1,5 A
ALL THE MEASURES ARE CUSTOMIZABLE ACCORDING TO YOUR VIDEO PROJECTOR
SPECIFICATIONS:
WEIGHT: 45,0 kg (99.2 lbs)
MAX CONSUMPTION COOLING MODE: 50 W / 0,2 A
MAX CONSUMPTION DURING HEATING AND DEHUMIDIFICATION MODE: 330 W / 1,5 A
